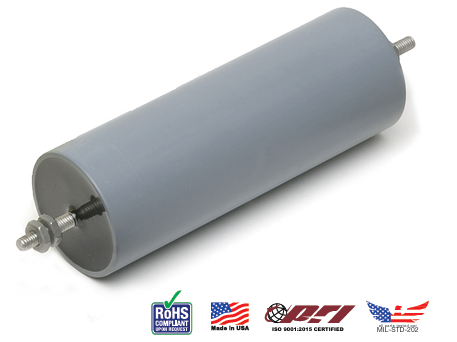

ARIZONA Capacitors W90523PVC管狀電容器
發布時間：2024-07-25 09:11:21 瀏覽：2219
ARIZONA Capacitors的W90523PVC管狀電容器是W90系列電容器的一部分，該系列以其全面的功能和多樣化的規格而著稱。以下是關于W90523PVC電容器的詳細介紹：
特性：
電壓范圍：提供從3kV到250kV DC的額定模型，適用于各種電壓需求。
電容范圍：電容值最大可達2.000 μf，滿足不同的容量需求。
公差：標準公差為±10%，確保產品的一致性和穩定性。
特征：
絕緣電阻：25 - 50k ΩF。
耗散因數：在1,000Hz下小于0.6%。
測試標準：通過130%額定電壓測試(1分鐘)，確保產品質量。
外殼材料：提供PVC、CPVC、PHENOLIC、G-10等選項。
操作溫度：
- G10外殼材料時，全額定溫度下的操作范圍為-55°C到60°C。
- 30%降額時，操作范圍擴展到-55°C到85°C。
- 50%降額時，操作范圍可至-55°C到105°C。
- 75%降額時，操作范圍可達-55°C到125°C。
質量認證：
- 符合ISO 9001:2015標準。
- 通過MIL-STD-202測試。
- 可應要求提供ROHS合規性。
型號與規格：
| 3kV MODELS |
| 5kV MODELS |
| 8kV MODELS |
| 10kV MODELS |
| MODEL | μf | DIA. | LENGiH |
| MoDEL μf DIA LENGTH |
| MODEL | μf | DIA. | LENGTH |
| MODEL μf DIA LENGTH |
| W90501y | .100 | 1 | 2.5 |
| W90507y | .050 | 1 | 2.5 |
| W90513y | .25 | 1 | 3.75 |
| W90519 | .10 | 1 | 3.75 |
| W90502y | .250 | 1 | 3.75 |
| W90508y | 0.1 | 1 | 3.75 |
| W90514y | .50 | 1 | 4.25 |
| W90520y | .25 | 1 | 4.25 |
| W90503y | .500 | 1 | 5.75 |
| W90509y | .250 | 1 | 5.75 |
| W90515y | .100 | 1 | 5.75 |
| W90521y | .50 | 1.31 | 5.75 |
| W90504y | .750 | 1.31 | 5.75 |
| W90510y | .500 | 1.31 | 6.25 |
| W90516y | .250 | 1.31 | 7.25 |
| W90522y | .100 | 1.31 | 6.25 |
| W90505y | 1.00 | 1.31 | 6.25 |
| W90511y | .750 | 1.9 | 5.75 |
| W90517y | .500 | 1.9 | 7.25 |
| W90523y | .250 | 1.9 | 7.25 |
| W90506y | 2.00 | 1.9 | 6.25 |
| W90512y | 1.00 | 1.9 | 6.25 |
| W90518y | .750 | 2.38 | 7.25 |
| W90524y | .500 | 2.38 | 7.25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 20kV MODELS |
| 30kV MODELS |
| 40kV MODELS |
| 50kV MODELS |
| MODEL | μf | DIA. | LENGTH |
| MODEL | (μf) | DIA. | LENGTH |
| MODEL | μf | DIA. | LENGTH |
| MODEL | (μf | DIA. | LENGTH |
| W90525y | .005 | 1 | 5.75 |
| W90531y | .002 | 1 | 7.5 |
| W90537y | .001 | 1 | 7.5 |
| W90543y | .001 | 1.9 | 8.25 |
| W90526y | .010 | 1.31 | 6.25 |
| W90532y | .005 | 1 | 8.75 |
| W90538y | .002 | 1 | 8.5 |
| W90544y | .002 | 1.9 | 8.75 |
| W90527y | .025 | 1.9 | 6.25 |
| W90533y | .010 | 1.9 | 7.5 |
| W90539y | .005 | 1.9 | 8.5 |
| W90545y | .005 | 2.38 | 9.25 |
| W90528y | .050 | 2.38 | 6.25 |
| W90534y | .025 | 1.9 | 9.75 |
| W90540y | .010 | 1.9 | 9.5 |
| W90546y | .010 | 2.38 | 10.5 |
| W90529y | .100 | 2.38 | 8.25 |
| W90535y | .050 | 2.38 | 11.75 |
| W90541y | .025 | 2.38 | 11.75 |
| W90547y | .025 | 3.5 | 11.25 |
| W90530y | .250 | 3.5 | 8.75 |
| W90536y | .100 | 3.5 | 11 |
| W90542y | .050 | 3.5 | 11 |
| W90548y | .050 | 3.5 | 14.75 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 60kV MODELS |
| 80kV MODELS |
| 100kV MODELS |
| 120kV MODELS |
| MODEL | μf | DIA. | LENGTH |
| MODEL | (μf) | DIA. | LENGTH |
| MODEL | μf | DIA. | LENGTH |
| MODEL | μf | DIA. | LENGTH |
| W90549y | .001 | 1.9 | 9.25 |
| W90555y | .001 | 2.38 | 10.5 |
| W90561y | .001 | 2.38 | 10.5 |
| W90567y | .001 | 2.38 | 14.5 |
| W90550y | .002 | 1.9 | 10 |
| W90556y | .002 | 2.38 | 10.5 |
| W90562y | .002 | 2.38 | 12.75 |
| W90568y | .002 | 3.5 | 14.5 |
| W90551y | .005 | 2.38 | 10.75 |
| W90557y | .005 | 2.38 | 12.25 |
| W90563y | .005 | 3.5 | 12.75 |
| W90569y | .005 | 3.5 | 17 |
| W90552y | .010 | 2.38 | 13 |
| W90558y | .010 | 3.5 | 13.25 |
| W90564y | .010 | 3.5 | 14.75 |
| W90570y | .010 | 4 | 17 |
| W90553y | .025 | 3.5 | 13.75 |
| W90559y | .025 | 4 | 15 |
| W90565y | .025 | 4 | 17.75 |
| W90571y | .025 | 4 | 24.5 |
| W90554y | .050 | 4 | 16 |
| W90560y | .050 | 4.5 | 19.75 |
| W90566y | .050 | 4.5 | 22.75 |
| W90572y | .050 | 4.5 | 28.25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 150kV MODELS |
| Complete part number by replacing ywith the following:
y=Case Material:PVC I CPVIPHN I G10
-PVC=PVC 60°℃LOWEST
-CPV=CPVC 85℃ LOW
-PHN=PHENOLC 105℃ MEDIUM
-G10=G-10125℃ HIGH
Standard termination is a 1/4-20x3/4"long electro-tin plated brass stud.Other termination such as,threaded inserts &corona
retarding flanges,are available.Contactfactory for detailed specifications. |
|
| MODEL | μf | DIA. | LENGTH |
|
| W90573y | .001 | 2.38 | 19.75 |
|
| W90574y | .002 | 3.5 | 19.75 |
|
| W90575y | .005 | 4 | 21.5 |
|
| W90576y | .010 | 4 | 25 |
|
| W90577y | .025 | 4.5 | 34 |
|
| W90578y | .050 | 5.56 | 37.5 |
|
